MySQL 8.0 to 8.4 LTS Upgrade Guide — Part 3: Upgrade Execution

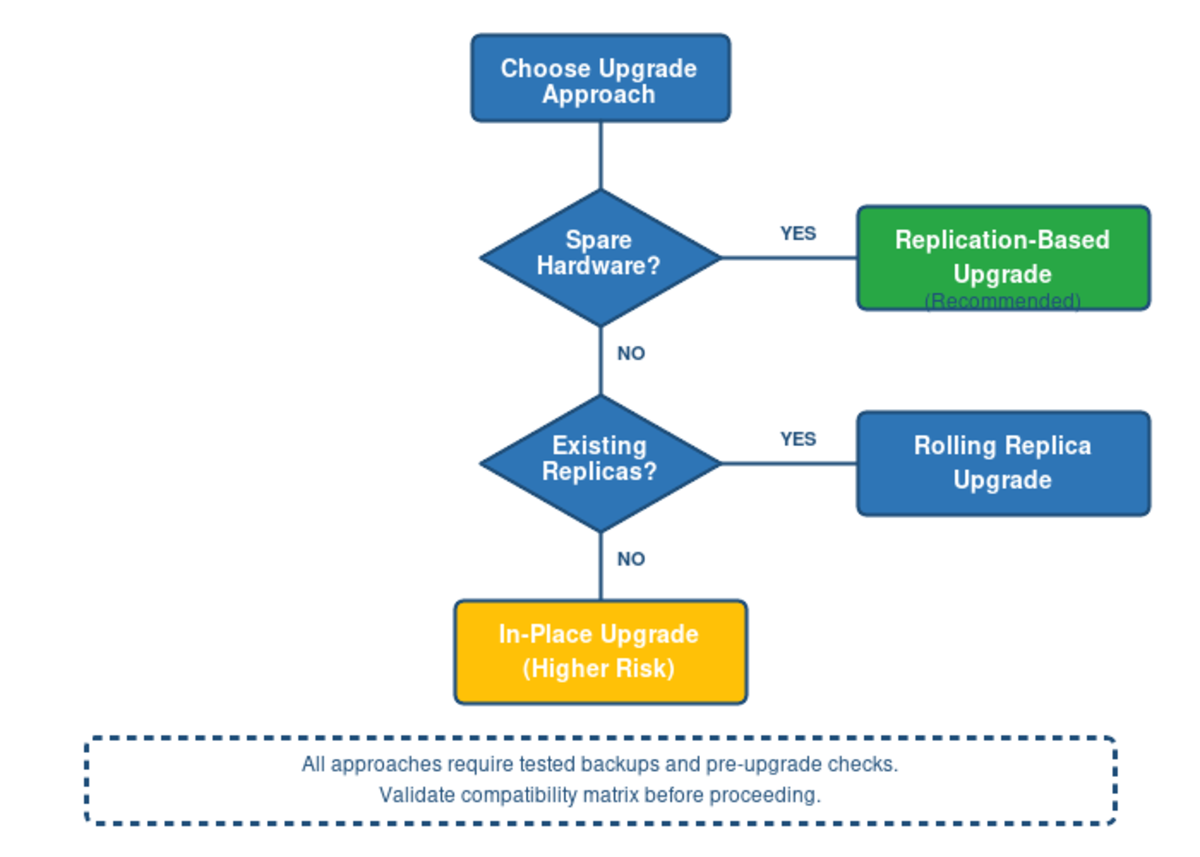

Three primary approaches exist for performing the MySQL 8.0 to 8.4 upgrade. Each has different trade-offs for downtime, rollback complexity, and hardware requirements. Use the decision flowchart below to choose the right one for your environment.

Choosing Your Upgrade Approach

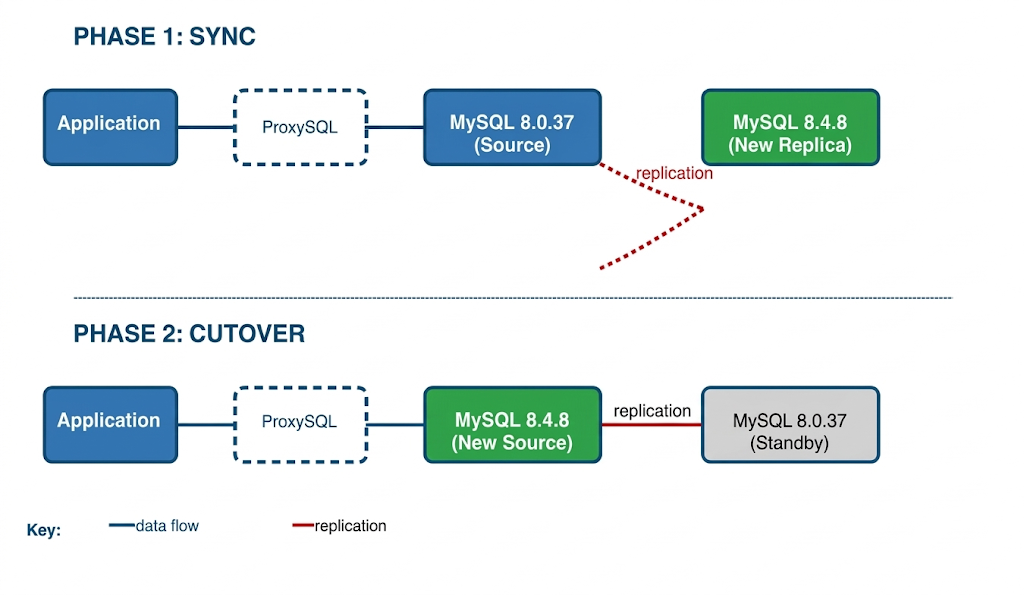

Approach 1: Replication-Based Upgrade (Recommended)

The replication-based approach provides minimal downtime, a natural testing period, and a straightforward rollback path. It requires additional hardware.

Step-by-Step Procedure

Step 1: Install MySQL 8.4.8 on a new dedicated server.

Step 2: Configure the 8.4 server with cleaned-up my.cnf.

Step 3: Take a consistent backup from the MySQL 8.0 source:

# Using XtraBackup:
xtrabackup --backup --target-dir=/backup/for_84 --user=root --password=<pw>

# Or using mysqldump:
mysqldump --all-databases --single-transaction --routines --triggers \
  --events --source-data=2 > backup_for_84.sql

Step 4: Restore the backup on the MySQL 8.4 server.

Step 5: Set up replication from 8.0 (source) to 8.4 (replica).

For GTID-based replication (recommended):

CHANGE REPLICATION SOURCE TO
  SOURCE_HOST = '8.0_source_ip',
  SOURCE_USER = 'repl_user',
  SOURCE_PASSWORD = 'repl_password',
  SOURCE_AUTO_POSITION = 1,
  GET_SOURCE_PUBLIC_KEY = 1;

START REPLICA;

For binary log position-based replication:

CHANGE REPLICATION SOURCE TO
  SOURCE_HOST = '8.0_source_ip',
  SOURCE_USER = 'repl_user',
  SOURCE_PASSWORD = 'repl_password',
  SOURCE_LOG_FILE = 'binlog.000XXX',
  SOURCE_LOG_POS = XXXXXXX,
  GET_SOURCE_PUBLIC_KEY = 1;

START REPLICA;

Step 6: Monitor replication lag until Seconds_Behind_Source = 0.

Step 7: Run application validation tests against the 8.4 replica.

Step 8: Schedule maintenance window for cutover.

Step 9: During cutover:

1. Set 8.0 source to read-only to drain writes gracefully:

SET GLOBAL read_only = 1;
SET GLOBAL super_read_only = 1;

2. Verify 8.4 replica is fully caught up (Seconds_Behind_Source = 0)
3. Stop replication on the 8.4 server: STOP REPLICA;
4. Redirect application connections to the MySQL 8.4 server
5. Verify application functionality with smoke tests

Estimated Time by Phase

Approach 2: In-Place Upgrade

The in-place upgrade replaces MySQL binaries on the same server. This requires less hardware but carries higher risk and longer downtime.

Step-by-Step Procedure

Step 1: Take full backup (both logical and physical) and verify restore works.

Step 2: Ensure binary log retention covers your rollback window:

SET GLOBAL binlog_expire_logs_seconds = 259200;  -- 3 days

Step 3: Record the current binary log position and GTID state.

Step 4: Stop MySQL 8.0 cleanly:

SET GLOBAL innodb_fast_shutdown = 0;  -- Clean shutdown (CRITICAL)

systemctl stop mysqld

Step 5: Back up the configuration file and data directory:

cp /etc/my.cnf /etc/my.cnf.bak_8037

# Option A: LVM snapshot (preferred for large datasets):
lvcreate --size 100G --snapshot --name mysql_snap /dev/vg0/mysql_data

# Option B: File copy (slower, requires disk space):
cp -a /var/lib/mysql /var/lib/mysql.bak_8037

Step 6: Remove MySQL 8.0 packages:

For Percona Server:

# RHEL/CentOS:
yum remove percona-server-server percona-server-client

# Debian/Ubuntu (use remove, NEVER purge):
apt-get remove percona-server-server percona-server-client

For Oracle MySQL:

# RHEL/CentOS:
yum remove mysql-community-server mysql-community-client

# Debian/Ubuntu (use remove, NEVER purge):
apt-get remove mysql-server mysql-client

Step 7: Install MySQL 8.4 packages:

For Percona Server repo:

# RHEL/CentOS:
yum install percona-server-server percona-server-common percona-server-client

# Debian/Ubuntu:
apt install -y percona-server-server percona-server-common percona-server-client

dpkg -l |grep percona |grep '8.4'

For Oracle MySQL rpm:

# RHEL/CentOS:
sudo yum install mysql-community-{server,client,client-plugins,icu-data-files,common,libs}-*

rpm -qa | grep mysql

# Debian/Ubuntu:
sudo dpkg -i mysql-{common,community-client-plugins,community-client-core,community-client,client,community-server-core,community-server,server}_*.deb

Step 8: Update my.cnf: remove all deprecated parameters, set explicit defaults.

Step 9: Start MySQL 8.4 with the existing data directory:

systemctl start mysqld

Step 10: Review the error log for upgrade messages and any issues:

tail -500 /var/log/mysql/mysqld.log

The server automatically upgrades the data dictionary and system tables on first start.

Approach 3: Rolling Replica Upgrade

For environments with an existing source-replica replication topology, upgrade replicas first, then failover. This combines the benefits of minimal downtime with no extra hardware requirement.

Procedure

1. Upgrade Replica 1: Stop replication, perform in-place upgrade to 8.4 (per the In-Place procedure above), restart replication
2. Monitor Replica 1 for stability, replication health, and query correctness (24-48 hours)
3. Upgrade Replica 2 using the same procedure
4. Once all replicas are on 8.4 and stable, perform a planned failover: promote an 8.4 replica as the new source
5. Upgrade the old source (now demoted to replica) to 8.4

Configuration File Template for MySQL 8.4

Below is a recommended baseline my.cnf template, cleaned of all removed parameters and with explicit values for changed defaults. Adjust all values to match your hardware and workload.

[mysqld]
# ── Basic Settings ──
datadir                = /var/lib/mysql
port                   = 3306
server-id              = 1001
log-error              = /var/log/mysql/mysqld.log

# ── InnoDB (set explicitly to avoid silent default changes) ──
innodb_adaptive_hash_index = OFF     # 8.4 default; set ON only if benchmarks justify
innodb_flush_method        = O_DIRECT # 8.4 default; use fsync for ZFS/NFS
innodb_io_capacity         = 5000     # SSDs: 2000-5000, NVMe: 10000+, HDD: 200
innodb_log_buffer_size     = 64M      # 8.4 default; reduce if memory-constrained
innodb_page_cleaners       = 4

# ── Binary Logging ──
binlog_expire_logs_seconds = 259200   # 3 days; set to cover rollback window

# ── Authentication ──
# Transitional: uncomment to temporarily allow legacy auth during migration
# mysql_native_password = ON

# ── REMOVED in 8.4 - DO NOT INCLUDE ──
# default_authentication_plugin  (use authentication_policy)
# master_info_repository         (always TABLE)
# relay_log_info_repository      (always TABLE)
# binlog_transaction_dependency_tracking
# expire_logs_days               (use binlog_expire_logs_seconds)
# avoid_temporal_upgrade
# show_old_temporals

Part 3 Quick Checklist

• Choose upgrade approach based on hardware and risk tolerance
• Take final pre-upgrade backup
• Execute upgrade using chosen approach
• Verify MySQL 8.4 starts and runs without errors
• Review error log for warnings
• Apply cleaned my.cnf configuration template
